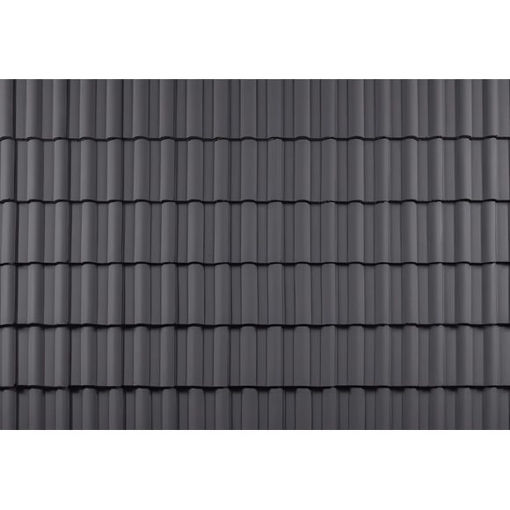

Russell Double Roman Roof Tile Anthracite 418x330mm

Russell Double Roman Roof Tile Anthracite 418x330mm

Each one of Russell’s tiles are made from the hard-wearing material concrete. The tiles provide excellent thermal insulation from heat, between the roof tile and ceiling, especially during summer months and protect the underlying membrane from deterioration. In cold climates, concrete roof tiles work against snow, ice accumulation and help retain heat as opposed to clay roof tiles, which can crack and damage easily in cold weather.

Specifications of Russell Double Roman Roof Tile Anthracite:

• Tile Size 418 x 330mm


• Tile Thickness 30mm


• Minimum Headlap 75mm


• Maximum Gauge 343mm


• Minimum Pitch 22.5° – 75mm Headlap*


• Maximum Pitch 60°


• Cover Width 298mm


• Nail Size 40 x 3.35mm Aluminium Nails


• Tile Clip Commercial Range Tile Clip fixed with a 65 x 3.35mm Nail


• Batten Size 50 x 25mm for rafters not exceeding 600mm c/c


• Covering Capacity 9.8 Tiles/m2 – 75mm Headlap


• Weight of Tilling 45 kg/m2 – 75mm Headlap
