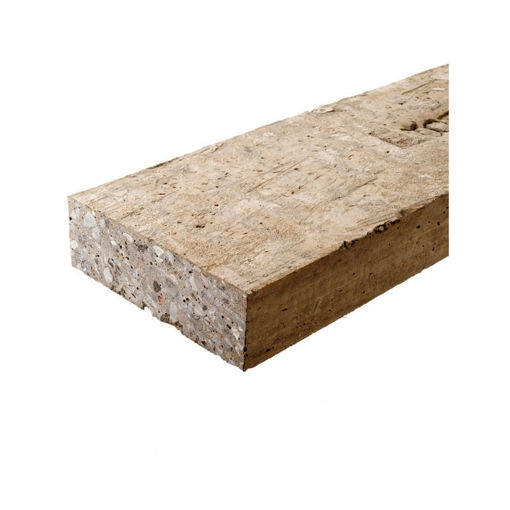

Stressline Prestressed Concrete Lintel 215 x 65 x 1200mm
The Stressline 215 x 65 x 1200mm Prestressed Concrete Lintel is a durable, standard-duty concrete lintel designed to provide structural support above suitable openings in masonry construction.
Manufactured from prestressed concrete with steel reinforcement, this lintel provides a strong and cost-effective solution for door, window and other suitable wall openings in residential, renovation and commercial building projects.
At 1200mm long, this 215 x 65mm concrete lintel has a published maximum clear span of 900mm, subject to the required loading, bearing, installation conditions and project specification.
Key Features & Benefits of Prestressed Concrete Lintel 215 x 65 x 1200mm:
- Stressline prestressed concrete lintel
- 215mm wide x 65mm high x 1200mm long
- Strong prestressed concrete construction
- Suitable for structural support above masonry openings
- Ideal for many door and window applications
- Published clear span of up to 900mm
- Published UDL of 17.0 kN/m
- Resisting moment of 1.9 kNm
- Durable and cost-effective structural solution
- Suitable for a wide range of building and construction projects
Product Specifications
- Manufacturer: Stressline
- Product Type: Prestressed Concrete Lintel
- Material: Prestressed Concrete
- Size: 215 x 65 x 1200mm
- Width: 215mm
- Height: 65mm
- Length: 1200mm
- Maximum Clear Span: 900mm
- UDL: 17.0 kN/m
- Resisting Moment: 1.9 kNm
- Approx. Weight: 41kg
What Is a 215 x 65 x 1200mm Concrete Lintel Used For?
This 1200mm prestressed concrete lintel is designed to provide structural support above suitable openings within masonry walls, including door and window openings.
The correct lintel size and specification will depend on the wall construction, opening width and the structural loads being supported. For this 1200mm lintel, published load-span data gives a maximum clear span of 900mm.
Load & Span Information
Published performance data for this 215 x 65 x 1200mm Stressline concrete lintel includes:
- Lintel length: 1200mm
- Maximum clear span: 900mm
- Uniformly Distributed Load (UDL): 17.0 kN/m
- Resisting Moment: 1.9 kNm
Load and span information should always be checked against the current manufacturer guidance and the structural requirements of the project before installation.
Choosing the Correct Concrete Lintel
When selecting a concrete lintel, consider the width of the opening, required end bearing, wall construction and the loads that the lintel will need to support.
If you are unsure whether this 215 x 65 x 1200mm concrete lintel is suitable for your project, check the relevant structural specification or contact our team before ordering.
Concrete Lintels from Rose Building Supplies
Rose Building Supplies stocks a range of prestressed concrete lintels in different sections and lengths for extensions, renovations, new builds and general construction projects.
Order building materials online for local delivery or collection from our Peterborough and Huntingdon branches, with delivery also available across the Corby area and selected surrounding locations.
Looking for a different size? Browse our full Concrete Lintels range to find alternative lengths and sections.
Frequently Asked Questions
What size is this concrete lintel?
This Stressline prestressed concrete lintel measures 215mm wide x 65mm high x 1200mm long.
What clear span does the 1200mm lintel have?
Published load-span data for this 215 x 65 x 1200mm lintel gives a maximum clear span of 900mm, subject to the correct loading and installation conditions.
Can this lintel be used above doors and windows?
Yes. Prestressed concrete lintels are commonly used to provide structural support above suitable door, window and other masonry openings. The correct lintel must be selected for the specific wall construction and loads involved.
What does UDL mean?
UDL means Uniformly Distributed Load. For this 1200mm lintel, the published UDL is 17.0 kN/m. Always check the structural requirements of your project before selecting a lintel.
