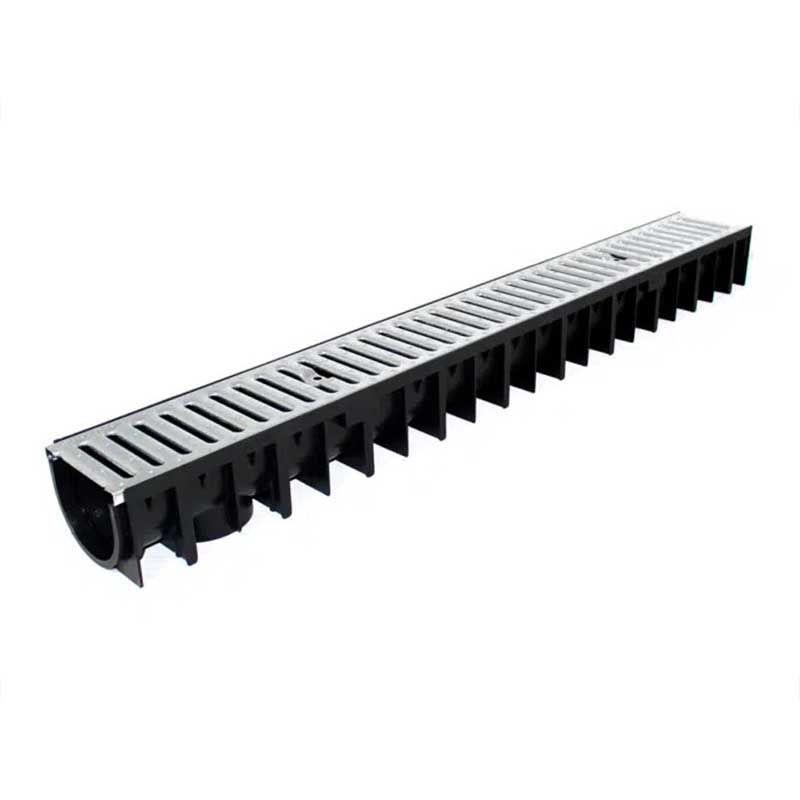

Polycon Lite Aqua 100 A15 SafeHeel Channel Drain 1m with Galvanised Slotted Grate - 92mm Deep
The Polycon Lite Aqua 100 A15 SafeHeel Channel Drain is a lightweight surface water drainage channel suitable for patios, garden paths, paved areas, pedestrian spaces and landscaping projects. Supplied in a 1m length with a galvanised steel slotted SafeHeel grate, it provides a practical and durable solution for collecting and directing surface water away from hard landscaped areas.
This product is the 92mm-deep version of the Lite Aqua 100 system and has a 100mm internal channel width. The galvanised slotted grate provides a clean metallic finish, while the SafeHeel design is intended to provide a more heel-friendly surface for pedestrian use. SnapFix locking secures the grate into the channel while allowing access when cleaning or maintenance is required.
Polycon Lite Aqua 100 A15 SafeHeel Channel Drain 1m with Galvanised Slotted Grate - Key Features & Benefits
- Length: 1000mm / 1m
- Internal Channel Width: 100mm
- Overall Depth: 92mm
- Load Class: A15
- Grate: Galvanised steel slotted SafeHeel grating
- SafeHeel Design: Heel-friendly grate design for pedestrian areas
- Locking System: SnapFix locking
- Channel: Lightweight Lite Aqua channel
- Application: Patios, paths, paving, pedestrian areas and landscaped spaces
- Manufacturer: Polycon
Galvanised Steel SafeHeel Grate
The channel is supplied with a galvanised steel slotted grate that provides a durable metallic finish alongside paving and other hard landscaping materials. The SafeHeel design is intended to create a more heel-friendly walking surface, making this version particularly useful in pedestrian areas and outdoor spaces where people regularly cross the drainage line.
SnapFix Grate Locking
The SnapFix locking system allows the grate to locate securely into the Lite Aqua channel while retaining convenient access for cleaning and maintenance. Where additional grate security is required, compatible locking accessories can be considered as part of the drainage installation.
92mm-Deep Lite Aqua Channel
This product is the 92mm-deep version of the Polycon Lite Aqua 100 channel. Its relatively shallow profile makes it a practical option for patios, paths and landscaping projects where installation depth may be limited.
The Lite Aqua range is available in additional depths, but this product code relates specifically to the 92mm-deep channel.
A15 Surface Water Drainage
The galvanised grating is rated A15 for appropriate pedestrian and light-duty applications. This makes the channel suitable for collecting surface water around garden patios, paths, paved areas and similar landscaped spaces where higher vehicle loading is not required.
Ideal For
- Garden patios
- Garden paths and walkways
- Pedestrian areas
- Paved areas
- Outdoor entertaining spaces
- Domestic landscaping
- Surface water drainage alongside paving
Product Specifications
- Brand: Polycon
- Range: Lite Aqua
- System: Lite Aqua 100
- Product Type: Linear channel drain
- Length: 1000mm / 1m
- Internal Channel Width: 100mm
- Overall Depth: 92mm
- Grate Material: Galvanised steel
- Grate Type: Slotted SafeHeel
- Load Class: A15
- Locking System: SnapFix
Compatible Lite Aqua Accessories
The Lite Aqua 100 system can be combined with matching accessories to complete the drainage installation. Compatible accessories include Lite Aqua end caps, end cap outlets, corner units, the 110mm vertical outlet and suitable grate locking accessories.
Installation Advice
Plan the position of the channel run and drainage outlet before installation. Multiple 1m Lite Aqua channels can be connected together to create longer linear drainage runs where required.
Install the channel with suitable support and falls for the intended application and follow Polycon's current installation guidance. Ensure the receiving drainage system is suitable for the amount of surface water being collected.
