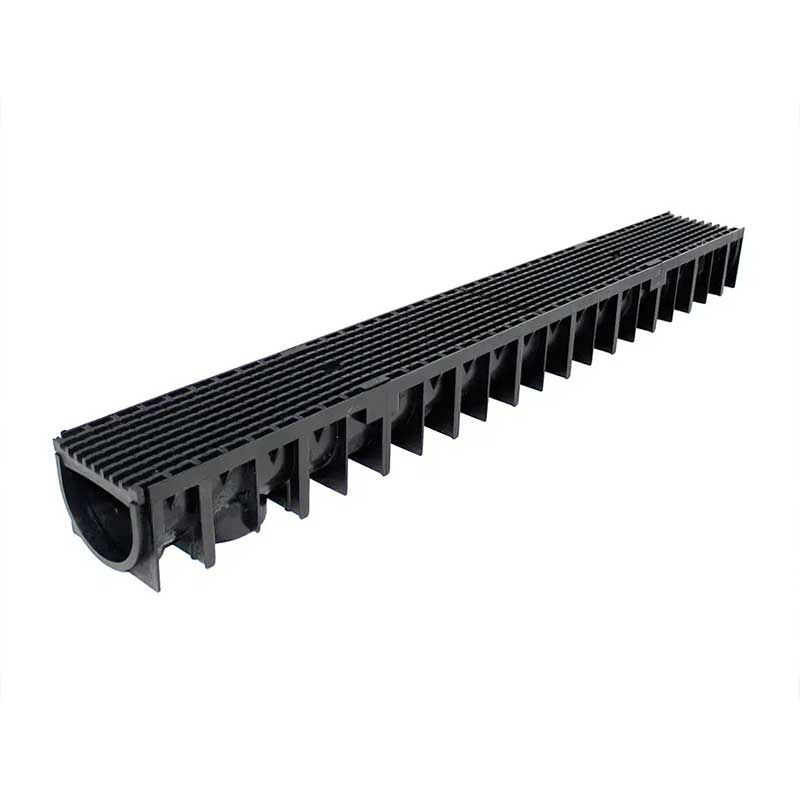

Polycon Lite Aqua 100 A15 Channel Drain 1m with Black Composite Grate - 92mm Deep
The Polycon Lite Aqua 100 A15 Channel Drain is a lightweight surface water drainage solution for patios, garden paths, paving and other domestic or pedestrian areas. Supplied in a 1m length with a black composite mesh grate, it provides a discreet alternative to galvanised steel drainage channels while helping collect and direct surface water away from hard landscaped areas.
Part of Polycon's Lite Aqua 100.92 system, this drainage channel has an overall depth of 92mm and is particularly useful where a relatively shallow linear drainage system is required. The lightweight polyethylene channel is easy to handle during installation, while the black composite grate provides a neat finish alongside dark paving, porcelain, block paving and other landscaping materials.
Polycon Lite Aqua 100 A15 Channel Drain 1m with Black Composite Grate - Key Features & Benefits
- Length: 1000mm / 1m
- Overall Width: 120mm
- Internal Width: 100mm
- Overall Depth: 92mm
- Internal Depth: 62mm
- Load Class: A15
- Grate: Black composite mesh grate
- Grate Pattern: 7x10mm mesh
- Channel Material: Polyethylene
- Application: Patios, paths, paving, pedestrian areas and domestic landscaping
- System: Polycon Lite Aqua 100.92
- Polycon Reference: LA.100.92.CMBG
1m Surface Water Channel Drain
The 1m Lite Aqua channel sections can be connected together to create longer linear drainage runs around patios, garden paths, paved areas and landscaped spaces. The system is designed to collect surface water along the channel and direct it towards a suitable drainage outlet.
Black Composite Grate
The channel is supplied with a black composite 7x10mm mesh grate. The dark finish provides a discreet appearance alongside paving and landscaped surfaces, making it particularly suitable where a less visible alternative to a bright galvanised steel grate is preferred.
Shallow 92mm Channel Design
With an overall depth of 92mm, the Lite Aqua 100.92 system provides a relatively shallow channel drainage solution that is useful for many domestic and landscaping projects. The channel has a 100mm internal width and a 120mm overall width.
A15 Light-Duty Drainage
The black composite mesh version is classified by Polycon as A15, making it suitable for appropriate pedestrian and light-duty applications. It is well suited to patios, paths and landscaped areas where heavy vehicle loading is not expected.
For applications exposed to higher loads, select a Polycon drainage channel and grating with the appropriate higher load classification.
Lightweight Polyethylene Channel
The Lite Aqua channel body is manufactured from polyethylene, creating a lightweight drainage system that is easy to transport, position and handle during installation. External strengthening ribs help support the channel while Polycon's connecting system allows multiple sections to be joined into a continuous drainage run.
Ideal For
- Garden patios
- Paved areas
- Garden paths and walkways
- Pedestrian areas
- Domestic landscaping
- Terraces and outdoor entertaining areas
- Surface water drainage alongside paving
Product Specifications
- Brand: Polycon
- Range: Lite Aqua
- System: Lite Aqua 100.92
- Product Type: Linear channel drain
- Length: 1000mm
- Overall Width: 120mm
- Internal Width: 100mm
- Overall Depth: 92mm
- Internal Depth: 62mm
- Channel Material: Polyethylene
- Grate Material: Composite
- Grate Colour: Black
- Grate Pattern: 7x10mm mesh
- Load Class: A15
- Polycon Reference: LA.100.92.CMBG
Compatible Lite Aqua Accessories
The Polycon Lite Aqua 100.92 system can be combined with matching accessories including corner units, end caps, end cap outlets, vertical outlets, sump units and bolt and bar fixings. Use accessories designed for the 92mm Lite Aqua system to ensure compatibility.
Installation Advice
Plan the channel run and outlet position before installation and ensure the drainage system is installed with suitable support and falls for the intended application. Lite Aqua inlay gratings are designed to locate securely into the channel using Polycon's snap-lock arrangement, with bolt and bar fixings available where additional security is required.
Always follow Polycon's current installation guidance and select a load class appropriate for the intended application.
