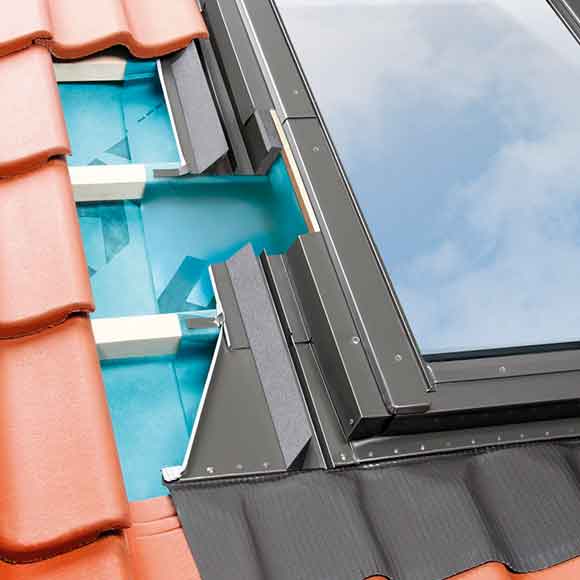

    Fakro EHV-A 01 550x780mm Standard Depth Thermo Flashing Kit for Interlocking Tile & Stone Slate up to 90mm High-profile

    Fakro EHV-A 01 550x780mm Standard Depth Thermo Flashing Kit for Interlocking Tile & Stone Slate up to 90mm - a universal flashing (Cannot be used with Natural Non-interlocking Slates) Suitable for up to 90mm High Profile Tiles. The EHV-AT Thermo with additional insulation is an ideal solution which tight and "Warm" connection of the window with the roof covering.
    SKU: RW/EHV01A
    Availability: In stock
    Stock
    Corby Out of stock
    Huntingdon Out of stock
    Peterborough In stock
    £78.20 excl tax
    i h

    Fakro EHV-A 01 550x780mm Standard Depth Thermo Flashing Kit for Interlocking Tile & Stone Slate up to 90mm High-profile


    High-profile roof coverings (up to 90 mm thickness) such as: roof tiles, profiled metal sheeting . For installation of roof windows at a pitch below 15° the EFW Flat Roof System should be used.

    A universal flashing (Cannot be used with Natural Non-interlocking Slates) Suitable for up to 90mm High Profile Tiles. The EHV-AT Thermo with additional insulation is an ideal solution which tight and "Warm" connection of the window with the roof covering. EHV-AT Thermo makes it possible to apply insulation of the window above the level of Battens. To the inside of the flashing there is glued flexible insulation material which adheres tightly to the window frame constituting a thermo-insulated frame. Thermo insulating material has excellent insulating values. Below the level of the Batten the window is insulated by a wool insulating kit XDP. The Thermo-insulated flashing can enhance the Coefficient U Value by up to 15% Depending on the Window Type and Size (When used with the XDP Kit). Thus avoiding thermal bridging and heat loss. The EHV-AT Thermo is a universal flashing type and Can be used with all types of roof coverings up to 90mm profile depth (Cannot be used with Natural Non-interlocking Slates) and with all wooden as well as aluminium-clad plastic roof windows. It is applied as standard to individual windows in the slope of the roof. The flashing may also be used as module flashing for windows used in Horizontal and Vertical combinations or block groups available for installation of windows at a depth "V". RAL7022. Can be used on roofs with pitches between 15-90º.


    Features of Fakro EHV-A 01 550x780mm Standard Depth Thermo Flashing Kit:



    • Flashing Type Single

    • Roof Pitch 15-90°

    • Supplier Code 882501

    • Tile Thickness Up to 90mm

    • Roofing Material Profiled Tile & Interlocking Slate

    • Window External Finish Grey
