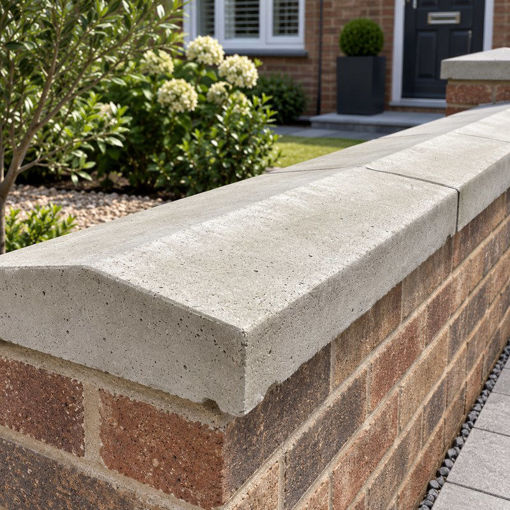

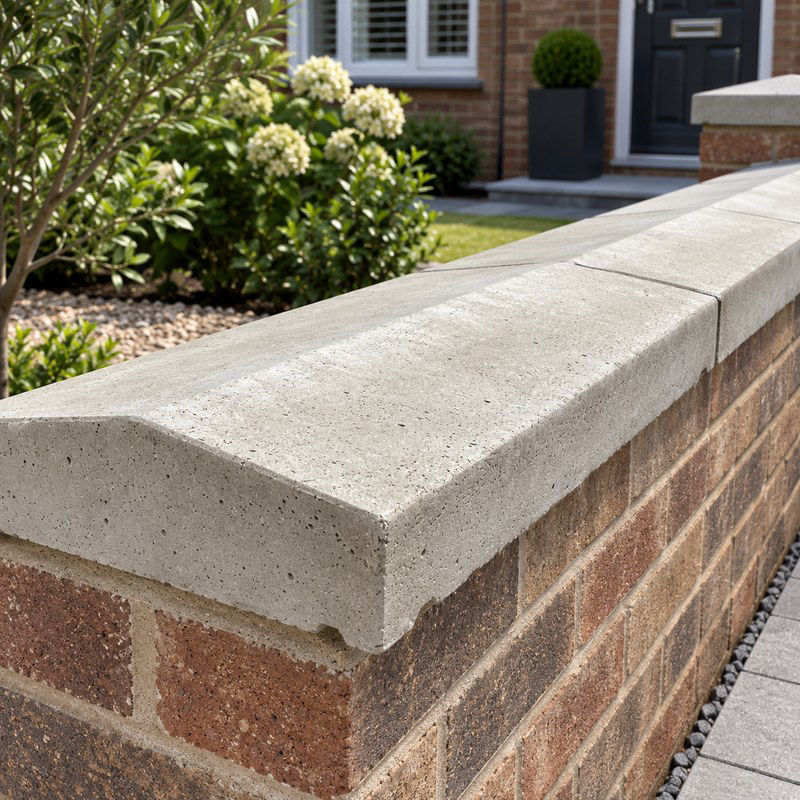

Concrete Twice Weathered Saddleback Coping 165x610mm
The Supreme Concrete Twice Weathered Saddleback Coping 165 x 610mm is a precast concrete coping stone designed to protect and finish the exposed top of brick, block and masonry walls.
Also known as a saddleback coping stone, its twice-weathered profile rises towards the centre and slopes down towards both sides. This encourages rainwater to run away from the top of the wall rather than remaining on the exposed masonry.
Integrated water-drip grooves underneath the projecting edges help direct water clear of the wall faces, reducing water staining and helping protect the wall against weather-related deterioration.
Manufactured by Supreme Concrete, this straight grey coping measures 165mm wide x 60mm high x 610mm long. It is commonly referred to as a 6.5" x 24" concrete coping and carries manufacturer product code COP111.
Key Features & Benefits of Saddleback Coping:
- Genuine Supreme Concrete coping stone
- Manufacturer product code: COP111
- Twice-weathered saddleback profile
- Slopes towards both sides for effective rainwater runoff
- Integrated water-drip grooves beneath the edges
- Helps direct rainwater away from wall faces
- Helps reduce staining and moisture exposure
- Protects the exposed top of brick, block and masonry walls
- Provides a neat and professional wall finish
- Durable precast concrete construction
- Smooth grey concrete finish
- Suitable for residential and commercial walling projects
- Designed in accordance with BS 5642 Part 2
- Sold individually
Product Specifications
- Manufacturer: Supreme Concrete
- Manufacturer Product Code: COP111
- Product Type: Concrete Coping Stone
- Profile: Twice Weathered / Saddleback
- Unit Type: Straight
- Material: Precast Concrete
- Colour: Grey
- Finish: Smooth Concrete Finish
- Size: 165 x 60 x 610mm
- Width: 165mm
- Height: 60mm
- Length: 610mm
- Imperial Size: Approx. 6.5" x 24"
- Approximate Weight: 12.5kg per unit
- Pack Quantity: 60 units
- Pack Weight: Approx. 750kg
- Water Management: Integrated drip grooves
- Application: External wall and pier protection
- Standard: Designed in accordance with BS 5642 Part 2
- Selling Unit: Each
What Is a Twice Weathered Coping Stone?
A twice weathered coping stone has two sloping upper surfaces that meet along a raised central ridge. Rainwater is directed towards both sides of the wall, helping prevent water from collecting on the exposed top surface.
This profile is also commonly described as a saddleback coping because of its raised centre and sloping sides. It differs from a once-weathered coping, which slopes in only one direction.
What Are Concrete Coping Stones Used For?
Concrete coping stones are installed along the exposed top of walls and piers. They provide a protective covering for the masonry underneath while giving the completed wall a neat and finished appearance.
Typical applications include:
- Garden walls
- Boundary walls
- Freestanding brick walls
- Concrete block walls
- Decorative masonry walls
- Landscaping walls
- Wall piers and entrances
- Suitable parapet wall applications
- Replacing damaged or weathered coping stones
- Residential and commercial walling projects
Protecting the Top of a Wall
The top of an external wall or pier is one of the most exposed parts of the structure. Rain, frost and changing temperatures can gradually affect unprotected brickwork, blockwork and mortar joints.
This Supreme Concrete coping covers the exposed upper surface and directs rainwater towards both sides. The projecting edges and underside drip grooves help water fall clear of the wall rather than running directly down its faces.
Correctly selected and installed coping stones can help reduce staining, moisture penetration and weather-related deterioration while improving the finished appearance of the wall.
Water-Drip Grooves
The underside of the COP111 coping includes water-drip grooves. These grooves interrupt the flow of rainwater and encourage it to drop away from the wall faces.
For the grooves to work effectively, the coping stone should project sufficiently beyond each side of the finished wall. The required overhang should be considered when selecting the correct coping width.
What Wall Width Is a 165mm Coping Suitable For?
This concrete coping stone is 165mm wide. The wall beneath should be narrow enough to allow the coping to project beyond both faces so the drip grooves can direct water clear of the masonry.
Measure the complete finished wall width before ordering, including render, cladding or other surface finishes. Wall construction and required overhang can vary, so check the project specification or seek appropriate installation advice where necessary.
Smooth Grey Concrete Finish
The Supreme Concrete COP111 has a smooth grey precast concrete finish that works well with many brick, block and masonry wall types.
Concrete is manufactured from natural aggregates, so minor variations in shade, texture and appearance may occur between units and production batches. Product images should therefore be treated as a guide.
Where several coping stones are being installed together, inspect and arrange the units before fixing to achieve a balanced finished appearance.
Installing Concrete Saddleback Copings
Concrete coping stones are normally installed onto a suitable mortar bed along the top of a structurally sound wall.
The supporting surface should be clean, stable and correctly prepared. Copings should be positioned evenly with suitable joints between adjoining units and adequate projection beyond both wall faces.
Use appropriate installation materials and follow the project specification and relevant building guidance. Due to the approximate 12.5kg unit weight, safe lifting and handling practices should be used.
How Many Coping Stones Will I Need?
Each COP111 coping is 610mm long. To estimate the quantity required, measure the complete length of the wall and divide it by the effective installed length of each coping.
Allow for mortar joints, cuts, corners, end units, breakages and wastage. The actual quantity required will depend on the wall layout and installation method.
Supreme Concrete COP111 Coping
The manufacturer reference for this product is COP111. This code identifies the straight Supreme Concrete twice-weathered coping in the 165 x 610mm size.
Matching end and corner units may be available within the Supreme Concrete coping range. Check the required product codes, dimensions and availability before ordering units for wall ends, returns or corners.
Frequently Asked Questions
What size is the Supreme Concrete COP111 coping?
The COP111 measures 165mm wide x 60mm high x 610mm long. It is commonly referred to as a 6.5" x 24" concrete coping.
What does twice weathered mean?
Twice weathered means the upper surface slopes down towards both sides from a central ridge. This allows rainwater to drain towards both wall faces.
Is a twice weathered coping the same as a saddleback coping?
Yes. Saddleback is a commonly used name for the twice-weathered profile because the raised centre and sloping sides resemble a saddle shape.
Does the COP111 have drip grooves?
Yes. The Supreme Concrete COP111 includes underside water-drip grooves that help direct water clear of the wall faces and reduce staining.
What is the COP111 coping made from?
It is manufactured from durable precast concrete and has a smooth grey finish.
How much does the Supreme Concrete COP111 weigh?
Each coping weighs approximately 12.5kg. Appropriate manual-handling care should be taken during transport and installation.
Can this coping be used on a garden wall?
Yes. It is suitable for compatible garden walls, boundary walls and other external brick, block or masonry walls when correctly selected and installed.
How do I know whether 165mm is wide enough?
Measure the complete finished wall width. The coping should project beyond both wall faces sufficiently for the drip grooves to direct water clear of the masonry.
Do Rose Building Supplies deliver concrete coping stones?
Yes. Local delivery is available across Peterborough, Huntingdon, Corby and selected surrounding areas. Delivery availability and minimum order requirements depend on the postcode and total order.
